RIM PBS Level 2B ≤ 30m Vehicle Monitoring Scheme

Road Infrastructure Management (RIM)

NSW PBS Telematics Conditions

PBS vehicles at all performance levels (i.e. Level 1-4) that meet Tier 1 bridge formulae must be enrolled in;

  • RIM when operating at General Mass Limits (GML) or Concessional Mass Limits (CML), or
  • TMA (or alternatively IAP) when operating at Higher Mass Limits (HML).

PBS vehicles at all performance levels (i.e. Level 1-4) that do not meet Tier 1 bridge formulae must be enrolled in;

  • TMA (or alternatively IAP) when operating at GML, CML or HML.

V-DAQ RIM & TMA Pricing

Notices:

National Class 2 Performance Based Standards (Tier 1) Authorisation Notice 2022

The NSW PBS Telematics Conditions apply to this notice.

The National Class 2 Performance Based Standards (Tier 1) Authorisation Notice 2022 provides eligible Tier 1 Performance Based Standards (PBS) vehicles with immediate access to relevant PBS networks across Australia to operate on approved networks without the need of a permit as soon as a Vehicle Approval is issued, although this may be at a restricted mass.

NSW PBS Access Maps

National Class 2 Performance Based Standards Vehicle (Tier 1) Authorisation Notice 2022

National Class 2 Performance Based Standards (Tier 1) Authorisation Notice Operator’s Guide

Notes: PBS Level 2B access is limited to 68.5t in NSW under this notice.

National Class 2 Performance Based Standards (High Productivity) Authorisation Notice 2022

The NSW PBS Telematics Conditions apply to this notice.

The National Class 2 Performance Based Standards (High Productivity) Authorisation Notice 2022 (No.1) which currently only applies in New South Wales and Victoria, enables eligible Performance Based Standards (PBS) vehicles to operate on approved networks without a permit.

NSW PBS Access Maps

National Class 2 Performance Based Standards (High Productivity) Authorisation Notice 2022

National Class 2 Performance Based Standards (High Productivity) Authorisation Notice Operator’s Guide

Notes: PBS Level 2B vehicles which meet the reference designs can operate at up to 85.5t in VIC and up to 85.0t in NSW under this notice.

PBS A-Double Reference Designs:

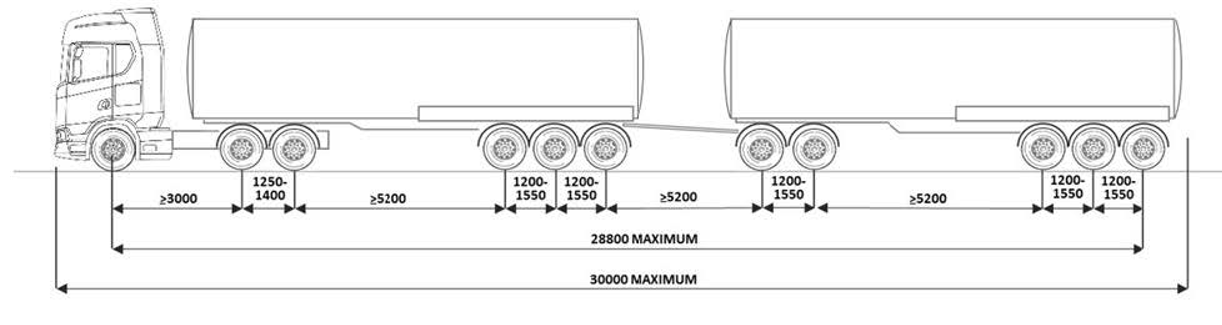

PBS A-Double Reference Design 1

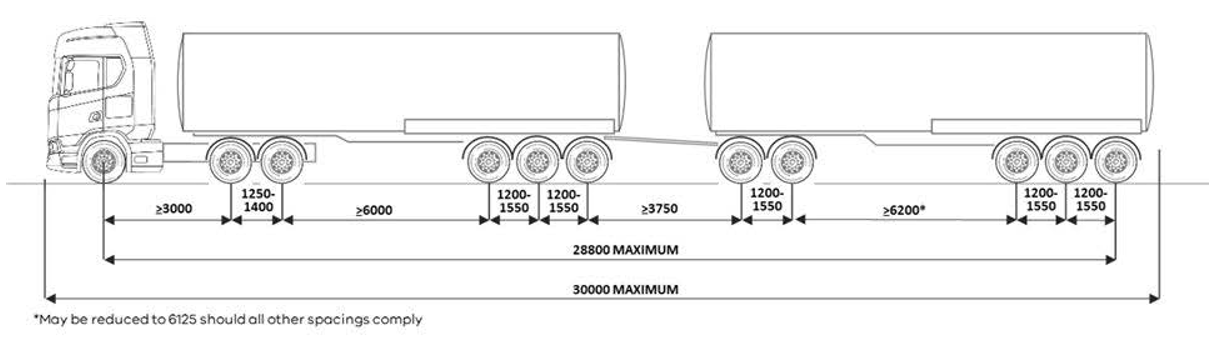

PBS A-Doubles Reference Design 2

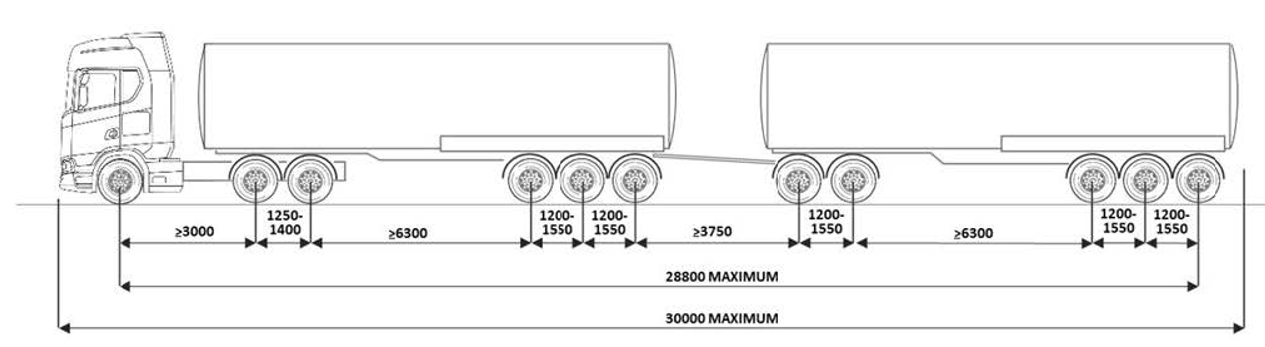

PBS A-Double Reference Design 3

Which Map To Use?

National Class 2 PBS Level 1 & 2A Truck and Dog Trailer Authorisation Notice 2021

The NSW PBS Telematics Conditions do not apply to this notice.

Class 2 PBS Level 1 & 2A Truck and Dogs can still operate under the National Class 2 PBS Level 1 & 2A Truck and Dog Trailer Authorisation Notice 2021.

NSW PBS Access Maps

National Class 2 PBS Level 1 & 2A Truck and Dog Trailer Authorisation Notice 2021
